Scripting¶

Doriax supports two scripting languages: Lua for fast iteration and flexible scripting, and C++ for full native performance. You can use either one or combine both in the same project.

Lua vs. C++¶

A common workflow is to prototype in Lua, then move hot paths to C++ when you need the extra performance.

Editor-era scripting model¶

Current Doriax projects usually attach behavior to entities with ScriptComponent. Each ScriptComponent can contain multiple script entries. A script entry stores the script type, paths, class/module name, enabled state, Properties window fields, and runtime instance pointer.

See Creating Scripts, Events, and Script Properties for the full workflow.

Entry points¶

Each project has entry points for both languages:

• C++ — the engine calls your init() function when the game starts.
• Lua — the main Lua script runs at startup and can require other Lua files.

-- main.lua
scene = Scene()
-- build your scene here
Engine.setScene(scene)

// main.cpp
#include "Doriax.h"
using namespace doriax;

Scene scene;

DORIAX_INIT void init() {
    // build your scene here
    Engine::setScene(&scene);
}

For editor-authored projects, the start scene and exported scene factories are usually more important than hand-written startup code. Use entry points for engine-level setup, not for recreating an entire editor-authored scene by hand.

The Engine API¶

The static Engine object is your main entry into the runtime. Common calls include:

Engine.setCanvasSize(1000, 480)   -- set the rendering canvas size
Engine.setScene(scene)            -- set the active scene

The same methods are available in C++ through Engine:: static methods.

Lua bindings¶

Doriax uses LuaBridge to expose the engine API to Lua. The binding layer registers:

Most C++ enums are mirrored into Lua namespaces, such as Scaling.FITWIDTH, BodyType.DYNAMIC, and GraphicBackend.METAL.

Script components¶

Attach ScriptComponent to an entity when behavior should live with that entity. The component supports C++ subclasses, C++ ScriptBase instances, and Lua script modules. Use script components for reusable entity behavior such as player controllers, enemy AI, interactive doors, or UI widgets.

Exposing values to the editor¶

C++ script properties are parsed by the editor and displayed in the Properties window when they use the supported property annotations. This lets designers tune values without editing source code. Keep exposed properties small and serializable: numbers, booleans, strings, colors, vectors, resource paths, and entity references are the best fit.

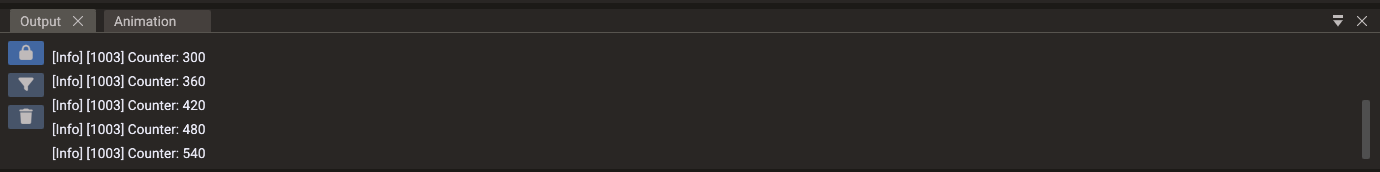

Logging¶

Use Log for runtime diagnostics in C++:

Log::print("Player spawned");
Log::warn("Missing optional texture: %s", path.c_str());
Log::error("Failed to load level");

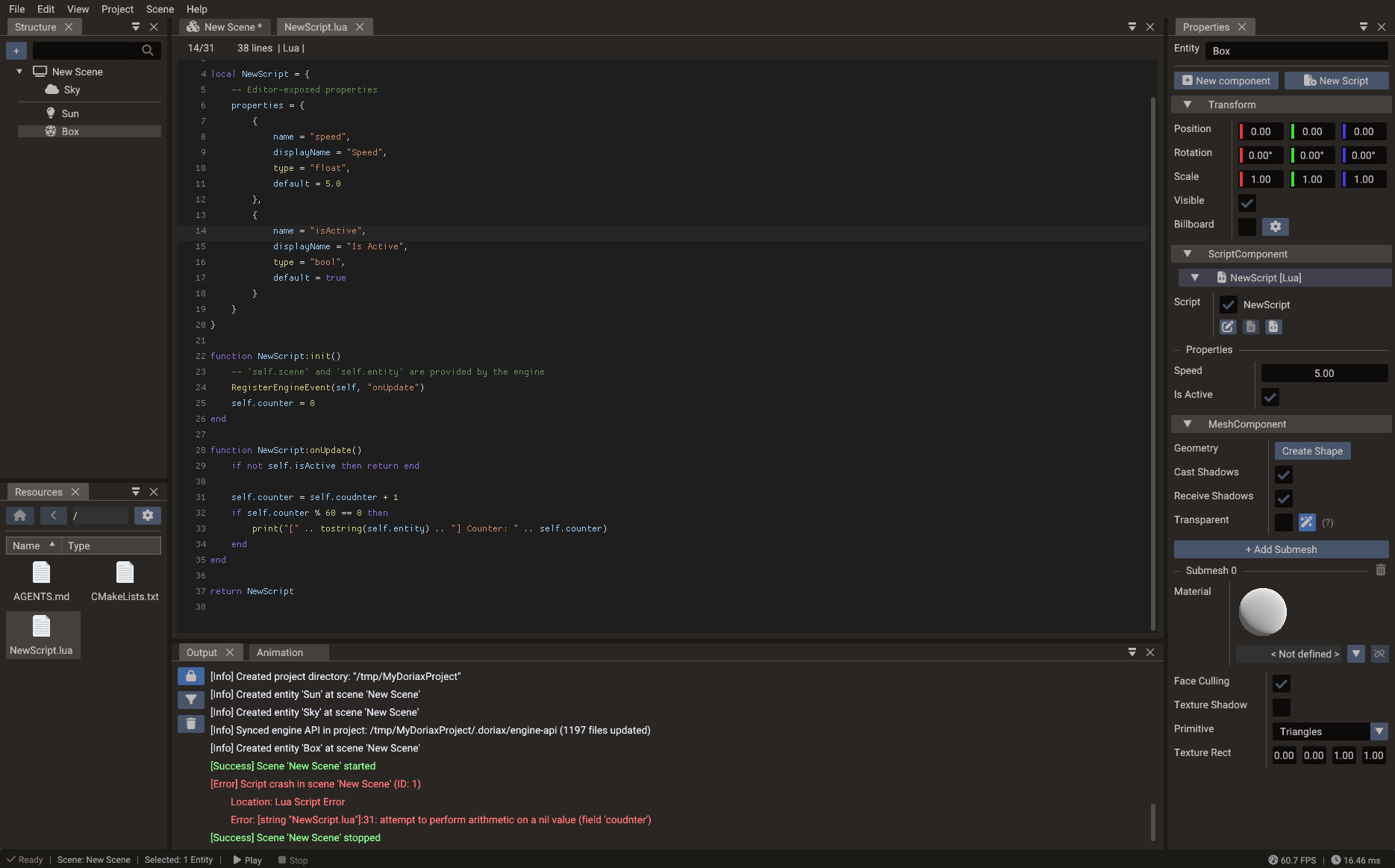

Lua scripts should use the engine's exposed logging functions when available, or fall back to regular Lua print() for quick diagnostics.

require() and module paths¶

Lua require("foo") searches the virtual filesystem:

1. lua://lua/foo.lua
2. lua://foo.lua

Dots in module names map to directory separators (require("ui.menu") → lua/ui/menu.lua).

Script component paths use the same lua:// prefix with the stored relative path.

Global helpers¶

Reference¶

• Creating Scripts — editor workflow and lifecycle
• Events — all event types and registration macros
• Script Properties — DPROPERTY and Lua properties
• API Index — complete class reference (C++ and Lua)
