Custom Shaders¶

Doriax ships built-in shaders for each renderable type (Mesh, UI, Points, Lines, Sky, Water). The editor lets you fork any of them into your project, edit the GLSL in the Code Editor, and see the result in the viewport — without leaving the editor. Forked shaders are compiled and shipped with your project just like the built-in ones.

The same fork mechanism drives post-process passes — fullscreen shaders a scene runs over the finished image.

How customization works¶

A custom shader is a fork of a built-in shader. The editor copies the built-in entry-point files (for example mesh.vert and mesh.frag) into a folder you pick in your project; you edit the shading code while the rest of the rendering contract stays intact:

• The variant system is unchanged — the engine still injects the same feature defines (skinning, normal maps, shadows, IBL, fog, instancing, …) based on the mesh, so your edited shader keeps working across all of those cases.
• Skinned forks that #include "includes/skinning.glsl" bind bone matrices through a storage buffer, or through a bone texture when the editor compiles for OpenGL / OpenGL ES (SKINNING_TEXTURE). Re-fork that include if you copied an older skinning.glsl that still declared mat4 bonesMatrix[MAX_BONES] in a uniform block.
• The shadow, depth, and G-buffer passes keep using the built-in shaders, so shadow casting and screen-space effects continue to work. A Mesh can fork its depth shader as well — the one behind its shadow maps and the depth pre-pass — for a colour fork that moves vertices or discards fragments (see The Depth Shader row).
• #include directives still resolve against the engine's shader library, so you only need the top-level .vert/.frag — not the whole include tree. If you want to edit the includes as well, the fork dialog can copy them for you (see Includes).

This means you customize the surface/shading logic while the engine continues to drive lighting, passes, and built-in inputs. Values of your own — a wave speed, a dissolve amount, the current time — reach the fork through its shader uniforms.

The Shader row¶

Open the Properties window for a Mesh, UI, Points, Lines, Sky, or Water entity. Each of these components has a Shader row:

Fork is available only while the row shows Built-in — reset the shader first to fork it again, so an existing fork is never orphaned by accident.

The Shader row is shown for a single selected entity (the path is per-entity). Assigning, editing, or resetting a custom shader is undoable.

The Depth Shader row¶

A Mesh component has a second row, Depth Shader, with the same controls. It forks depth.vert and depth.frag — the shader the engine draws the mesh with into shadow maps, into the optional scene depth prepass, and into the depth pre-pass that feeds SSAO and post-process depth while SSR is off (with SSR on, those read the G-buffer, which keeps the built-in shader).

The colour fork never reaches those passes, so a mesh whose fork displaces vertices or discards fragments keeps casting the shadow of its undisplaced, undiscarded geometry — and self-shadows against it once the displacement grows. Fork the depth shader too, apply the same displacement or discard there, and the shadow follows. The variant defines (skinning, morph targets, terrain, instancing, alpha mask) are the ones depth.vert and depth.frag already handle, so the fork keeps working across those cases.

A depth fork reads the same shader uniforms as the colour fork, so one value drives both: declare the same member names in its u_vs_customParams / u_fs_customParams blocks. It is compiled as soon as it is set — even in a scene with no shadow-casting light — so its members and build errors show up right away; a fork that fails to build is reported as Depth shader failed to build under the row while the built-in depth shader keeps drawing.

The depth shader is per mesh — there is no scene default — and its fork name is pre-filled with a _depth suffix. Like the colour fork it is undoable, saved with the scene, exported with the project, and scriptable through customDepthShader (see Setting values from scripts).

Depth forks and the depth prepass¶

With the scene depth prepass on, the depth fork also writes the depth the colour pass tests against, so both must land on the same pixel. u_vs_depthParams carries mvpMatrix — the light (or camera) view-projection already multiplied by the model matrix — and depth.vert sets gl_Position from it under invariant, matching mesh.vert bit for bit. Keep that in a fork: multiplying lightVPMatrix * modelMatrix yourself still compiles (older forks keep working) but can round differently and z-fight in the prepass.

A mesh whose colour shader is forked — or covered by a scene default mesh shader — without a depth fork is left out of the prepass and drawn once in the colour pass, since the built-in depth shader cannot know where the fork moves its vertices. Add a depth fork with the same displacement to bring it back in.

Water shaders¶

A Water component has two rows. Shader forks water.vert and water.frag, the surface itself. Underwater Shader forks fullscreen.vert and underwater.frag, the fullscreen fade drawn over the scene while the main camera is below the surface (it needs Underwater on). Its fork name is pre-filled with an _underwater suffix, and a fork that fails to build is reported as Underwater shader failed to build under the row while the built-in fade keeps drawing.

Both forks read the water's shader uniforms — the surface through u_vs_customParams / u_fs_customParams, the fade through u_fs_customParams — so one value can drive both. The surface shader can also be a scene default; the underwater shader is per water only.

The water fork keeps the engine's variant defines: HAS_FOG, USE_SCENE_DEPTH (Depth Effects), USE_PLANAR_REFLECTION, USE_SHADOWS, and USE_REFRACTION — see Shader Variants — water.

The Fork Shader dialog¶

Forking asks where the new shader goes before writing anything:

The name is pre-filled from the entity (or the scene and shader type, for a scene default) and gets a numeric suffix if that name is already taken. Create stays disabled while a target already exists — forks never overwrite files, because undoing one deletes what it wrote.

The layout depends on whether you fork the includes:

Forking includes gives the shader a folder of its own so your edited copies apply to that shader alone. Creating the fork is a single undoable step — undo removes the files it wrote and restores the previous shader.

Scene default shaders¶

Besides per-component shaders, each scene can set a default custom shader per type. Select the scene (no entity) in the Structure panel and look for the Default Shaders section at the bottom of the scene settings in the Properties window. It shows one row per applicable type — 3D scenes list Mesh, Sky, Water, UI, Points, and Lines; 2D scenes omit Sky and Water; UI scenes list only UI.

Each row offers the same controls as the component Shader row (fork, edit files, open .vert/.frag, reset, drag-and-drop), and every change is undoable.

The shader used by a component is resolved with this priority:

1. Component shader — a custom shader assigned on the component always wins.
2. Scene default shader — used by every component of that type with no shader of its own. Its Shader row shows the default's name followed by (scene default).
3. Engine built-in — used when neither is set.

A component with no custom shader inherits the scene default; resetting a component's shader returns it to the scene default (or the built-in if the scene has none). To keep a single component on stock shading while a scene default is active, fork the built-in shader for that component and leave it unedited.

A default that declares shader uniforms lists them under its row, below a line named after the fork (for example toon Uniforms). Values set there belong to the scene, and every component that inherits the shader reads them. A component can still set its own value for a member, and that value wins (see Editing values). The rows appear once a component renders with the fork, and they cover the members of every shader variant in use.

Scene default shaders and their uniform values are saved with the scene, applied in play mode, and exported like any other custom shader — components that inherit them compile and ship the right shader variants automatically. They are also scriptable via the Scene properties defaultMeshShader, defaultUIShader, defaultSkyShader, defaultPointsShader, defaultLinesShader, and defaultWaterShader (see the Scene reference), and the values through setDefaultShaderUniform, which takes the shader type (ShaderType.MESH, ShaderType.UI, and so on).

Shader uniforms¶

A fork can declare a uniform block of its own and have the engine fill it: from rows in the Properties window, from a script every frame, or with the current time. This is how a water, wave, fire, or dissolve effect gets its parameters.

Declare u_vs_customParams in the vertex shader, u_fs_customParams in the fragment shader, or both. Members are matched by name, so a name that appears in both blocks receives the same value in both stages:

// wave.vert
uniform u_vs_customParams {
    float time;
    float amplitude;
} customParams;

// ... in main():
pos.y += sin(customParams.time * 3.0 + pos.x * 4.0) * customParams.amplitude;

// wave.frag
uniform u_fs_customParams {
    float time;
    vec4 tint;
} customParams;

// ... at the end of main():
g_finalColor.rgb = mix(g_finalColor.rgb, customParams.tint.rgb, 0.5 + 0.5 * sin(customParams.time));

The built-in Mesh, UI, Points, Lines, Sky, Water, underwater, and depth sources all carry a comment showing the declaration, so a fresh fork has it at hand. Nothing else is needed: the block is picked up from the compiled shader by name, and a fork that declares none behaves exactly as before.

Editing values¶

Every member becomes a row in the Properties window, below the component's Shader row and under a line named after the fork (for example wave Uniforms). Save the file and the rows appear. Values are stored on the component, by name:

• A Mesh keeps one set of values for all of its submeshes.
• A component that inherits a scene default shader shows the scene's value for any member it has not set. Editing the row gives the component its own value, which wins, so two meshes on the same default shader can still be tinted differently. A row with its own value has a reset arrow that goes back to the scene's.
• Reordering members keeps their values; renaming or deleting one drops its value. A member with no value reads zero — GLSL uniform blocks have no initializers.

The rows are drag fields (float, vec2, vec3, vec4 and their int forms), every edit is undoable, and the values are saved with the scene and exported with it. Matrix and array members take no value and stay zero; they show as Not editable — declare one scalar or vector member per value instead.

Two names are reserved and written by the engine every frame instead of being edited; they head the list, dimmed, as Set by the engine:

resolution is what screen-space effects need (scanlines, pixel snapping, dithering against gl_FragCoord), and it follows the target: the same fork drawn by a render-to-texture camera sees that camera's size. Rename a member if you want to drive a value with one of these names yourself.

Setting values from scripts¶

The same values are scriptable, so a uniform can follow gameplay or animate every frame. Mesh (and everything derived from it — Shape, Model, Sprite, Terrain, Tilemap), Image, Text, Polygon, Points, Lines, SkyBox, and Water all expose:

Setting a value only rewrites the block bytes — no shader reload — so calling it every frame is fine:

Shape water(&scene);
water.createPlane(20, 20);
water.setCustomShader("shaders/wave");
water.setShaderUniform("amplitude", 0.3f);
water.setShaderUniform("tint", Vector4(0.2f, 0.5f, 1.0f, 0.5f));

function WaveScript:init()
    self.water = Shape(self.scene)
    self.water:createPlane(20, 20)
    self.water.customShader = "shaders/wave"
    self.water:setShaderUniform("amplitude", 0.3)
    self.water:setShaderUniform("tint", Vector4(0.2, 0.5, 1.0, 0.5))
    RegisterEngineEvent(self, "onUpdate")
end

function WaveScript:onUpdate()
    -- "time" and "resolution" need no call: the engine writes them. Gameplay-driven
    -- values go through the same method every frame.
    self.water:setShaderUniform("amplitude", 0.3 * self.stormLevel)
end

Setting a reserved name (time, resolution) logs an error and is ignored. For a glTF model, call these on the part entities (Mesh(scene, scene:findEntity("Body"))), as the note above explains. See the Mesh reference for the full signatures.

Post-process passes¶

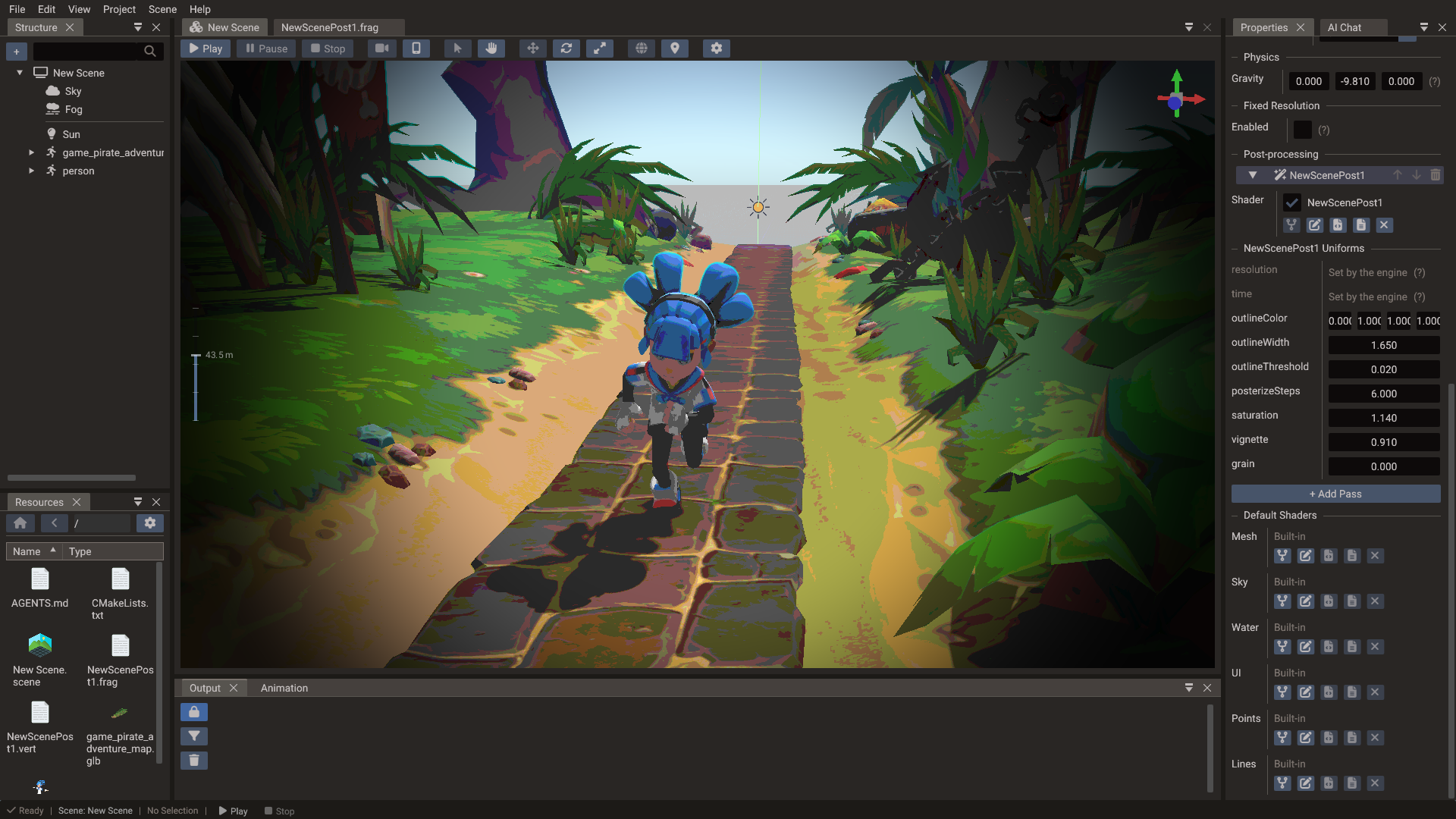

A scene can run an ordered chain of fullscreen passes over its finished image: sharpen, tint, vignette, colour grading, and so on. Each pass is a forked shader, and unlike the component shaders above the chain belongs to the scene, not to any entity.

Select the scene (no entity) in the Structure panel and open the Post-processing section of the scene settings in the Properties window.

Every change is undoable, and the chain is saved with the scene.

The chain runs on the scene's active camera, after the opaque, transparent, UI, and SSR passes, and before the fixed-resolution upscale. Secondary cameras — minimaps, mirrors, portals — do not run it; if the active camera itself renders to a texture, the chain writes into that texture. A scene drawn as a layer skips its chain, because a fullscreen pass would overwrite the scene below it.

Writing a pass¶

Forking a post-process pass copies fullscreen.vert and postprocess.frag into your project. The vertex shader draws a fullscreen triangle and normally needs no edits — all the work happens in the fragment shader.

A pass may declare any subset of the inputs below; only the ones it actually uses are bound:

Pass uniforms¶

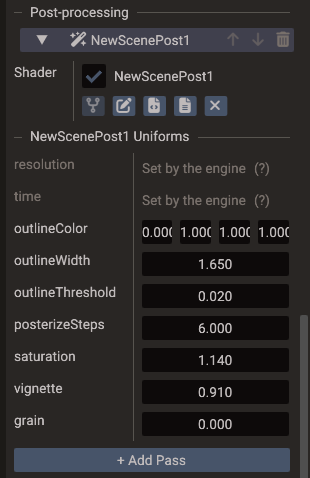

Declaring a u_fs_postParams block makes every member an editable row of its pass, under a line named after the fork. No extra declaration file or editor change is needed:

uniform u_fs_postParams {
    vec4 resolution;
    float amount;
    float threshold;
    vec4 tintColor;
} postParams;

Add a member, save the file, and a row appears for it. Values are stored by name, so reordering members keeps them, and renaming or deleting one simply drops its saved value. A member with no saved value is zero — GLSL uniform blocks have no initializers, so there is no shader-side default to read.

Two names are reserved and written by the engine every frame instead of being edited. They head the list, dimmed, as Set by the engine:

Use resolution for anything that depends on target size — a texel offset written as a literal breaks the moment the window resizes. Rename the uniform if you want to drive that value yourself.

Members are edited as drag fields; matrix and array members take no value and show as Not editable.

The values are scriptable as well. scene:setPostProcessUniform(index, name, value) rewrites one member of the pass at index (top of the list is 0, also from Lua) without rebuilding the chain, so it can run every frame; scene:getPostProcessUniform(index, name) reads it back, scene:removePostProcessUniform(index, name) drops it, and scene:setPostProcessPassEnabled(index, enabled) toggles a pass. The whole chain is available as scene.postProcessPasses — a list of PostProcessPass values with shader, enabled, and setUniform/getUniform — for scripts that build it themselves (in Lua a 1-based sequence, so scene.postProcessPasses[1] is pass index 0):

scene.setPostProcessUniform(0, "amount", 0.8f);

scene:setPostProcessUniform(0, "amount", 0.8)

See the Scene reference.

Export¶

Every pass ships its forked shader, including disabled ones — the generated scene carries the whole chain, and the enable flag is a runtime value. A pass whose shader fails to compile falls back to the passthrough, so the scene keeps rendering; the list marks it Shader failed to build and the compiler output goes to the Output panel.

Editing and live updates¶

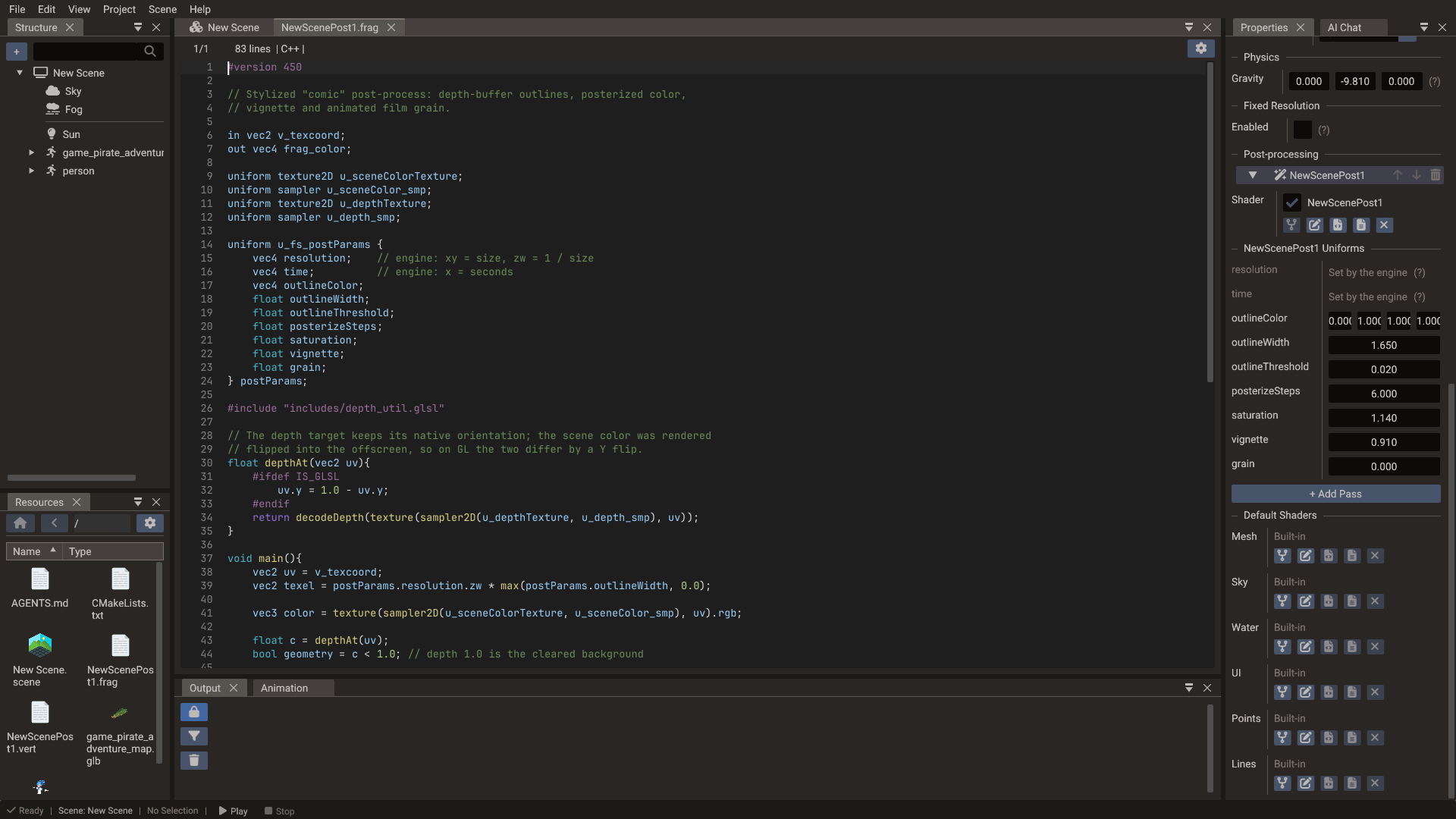

Forked shaders open in the Code Editor with GLSL syntax highlighting (.vert, .frag, and .glsl files). When you save a shader source file, the editor recompiles the affected forked shaders and refreshes the viewport — no rebuild or replay needed.

Only shaders that actually reach the edited file through #include are rebuilt: the editor tracks each fork's real dependency graph rather than assuming everything in a folder is related. Editing a shader in an external editor works too — the change is picked up when the Code Editor reloads the file.

Vertex attribute limit¶

A vertex stage can declare at most 16 inputs, and each one has to sit at a layout(location = N) below 16 — the location indexes the engine's attribute semantic table, which is what the HLSL and Metal backends bind against. A shader that goes past either limit fails to compile with the offending input named in the Output panel, and the component keeps the shader it had. Reuse a free location or pack values into a wider vector instead of adding another input.

Fragment inputs and outputs are not bound by that table, so varyings between stages are free of the limit.

Includes¶

Shaders include by a fixed key — #include "includes/pbr.glsl" — and a fork resolves each key in this order, taking the first that exists:

A fork's folder mirrors the engine shader library, so a key keeps its shape: includes/pbr.glsl is looked up at <fork folder>/includes/pbr.glsl.

• Use an engine include — #include "includes/pbr.glsl" resolves to the engine's copy automatically; you do not need to copy anything.
• Override an include for one shader — tick Also fork shader includes when you fork. The copies land in the fork's own folder and win for that shader alone.
• Override an include for the whole project — put the file at the same key under the project root, for example <project>/includes/pbr.glsl.
• Add your own include — drop a .glsl next to the fork and include it by its path relative to the fork folder (#include "lib/noise.glsl"), or put it anywhere in the project and include it relative to the project root (#include "shaders/lib/noise.glsl").

Overrides never change the engine's built-in rendering — a built-in shader always uses the engine library. A fork stored loose in a folder shares whatever includes/ that folder holds, which is why forking includes moves the shader into a folder of its own.

Shader locations¶

Shaders have no directory settings. Sources live wherever you fork them — each fork chooses its own location in the Fork Shader dialog — and the engine never reads them anyway. It only consumes compiled .sdat.

Compiled .sdat output goes to the project's shaders folder, the fixed location the engine reads through System::getShaderPath().

Export and runtime¶

Forked shaders flow through the same export pipeline as the built-in ones (see Export Window — Shader compilation):

• Every used shader — including your forks — is compiled and embedded into the build for the target backends. The shader sources are not needed at runtime.
• To get loose .sdat or JSON files instead, use the shaders CLI command, which writes them straight into its --out directory.

At runtime the engine identifies a component's shader (or a post-process pass's shader) from the value saved on it and loads the matching compiled .sdat — it never reads the source files. Because the engine only cares about the compiled output, your shader sources can be organized however you like.
