First UI Scene¶

This tutorial builds a UI scene — a separate scene dedicated to screen-space widgets — and shows how to layer it on top of a gameplay scene. UI scenes are the recommended approach for HUDs, menus, and overlays in Doriax.

What you will build¶

By the end of this tutorial you will have:

• A UI scene with a centered panel, a text label, and a Button
• A Progressbar acting as a health bar in the top-left corner
• The UI scene loaded on top of a gameplay scene
• A script that updates the health bar value from gameplay logic

1. Create a UI scene¶

1. Open the editor and open or create a project that already has a gameplay scene (main or level_01).
2. Choose Scene → New Scene → UI Scene.
3. Save it as scenes/hud.scene.

A new UI scene starts empty and draws through a built-in UI camera that frames the project's canvas.

2. Set the canvas size¶

The canvas is shared by every scene in the project. Open Project → Project Settings → Canvas, set Canvas Width / Height to your design resolution — for example 1920 × 1080 — and set Scaling Mode to Letterbox to keep the aspect ratio across different screen sizes.

3. Add a health bar¶

1. In the Structure panel, choose + → Create entity → UI → Progressbar. It comes with a Fill child that draws the filled part of the bar.
2. In the Properties window:
3. Set Width to 300 and Height to 24.
4. Enable Use Anchors and set Preset to Top Left.
5. Set Position Offset to 20, 20 to inset the bar from the corner.
6. Set the initial Value to 0.8. Progressbar values are normalized from 0.0 (empty) to 1.0 (full).
7. Select the Fill child to give the bar a texture or a Color (e.g. green for health).
8. The health bar appears in the top-left corner of the canvas.

4. Add a center panel with a button¶

For a "Game Over" overlay:

1. Choose + → Create entity → UI → Panel.
2. Set Width to 400 and Height to 250, enable Use Anchors, and set Preset to Center.
3. Drop an image from the Resources Browser onto the panel in the viewport to give it a background texture, or leave it as a solid color.

The panel comes with a title bar. Set its text:

1. Expand the panel in the Structure panel and select HeaderText (under HeaderImage → HeaderContainer).
2. Set Text to Game Over and FontSize to 26.

Add a label inside the panel:

1. Right-click the panel and choose Create child → UI → Text.
2. Enable Use Anchors and set Preset to Center.
3. Set Text to Score: 1250.

Add a restart button:

1. Right-click the panel in the Structure panel and choose Create child → UI → Button.
2. Enable Use Anchors, set Preset to Center Bottom, and set Position Offset to 0, -24 to lift it off the edge.
3. Select the button's Label child and set its Text to Restart.
4. The HUD script in the next step exposes a restartButton property for this button.

5. Write a HUD script¶

Create a Lua script scripts/HUD.lua:

-- In Lua, editor-exposed fields are declared in a `properties` table
-- (DPROPERTY is a C++-only macro).
local HUD = {
    properties = {
        { name = "healthBar", displayName = "Health Bar", type = "Progressbar" },
        { name = "restartButton", displayName = "Restart Button", type = "Button" }
    }
}

function HUD:init()
    RegisterEngineEvent(self, "onUpdate")
    if self.restartButton then
        local button = self.restartButton:getButtonComponent()
        RegisterEvent(self, button.onPress, "onRestart")
    end
end

function HUD:onUpdate()
    -- Read health from a shared value or an event
    -- For demonstration, GameState.health is a percentage from 0 to 100
    if GameState and GameState.health and self.healthBar then
        self.healthBar.value = GameState.health / 100
    end
end

function HUD:onRestart()
    SceneManager.loadScene("Main")
end

return HUD

Select the panel, click New Script, and create a Lua script named HUD — or, if you wrote the file already, choose Attach existing in the same dialog. Then drag the health bar and the button from the Structure panel onto the Health Bar and Restart Button fields of the script entry.

6. Load the UI scene as a layer¶

In the editor, the simplest way is to make the HUD a child scene of the gameplay scene: select the gameplay scene in the Structure panel, right-click the scene root, and choose Add child scene → HUD. Leave Start active on so the HUD loads with the level. The exporter then loads both together when you call SceneManager.loadScene("Main").

If you are wiring scenes up by hand instead, register the gameplay scene and its HUD as a single stack — one factory that sets the main scene and adds the HUD layer — so a single loadScene brings up both:

SceneManager.registerScene(1, "Main", function()
    Engine.setScene(gameplayScene)
    Engine.addSceneLayer(hudScene)   -- HUD layer on top
end)

SceneManager.loadScene("Main")

SceneManager::registerScene(1, "Main", []() {
    Engine::setScene(&gameplayScene);
    Engine::addSceneLayer(&hudScene);   // HUD layer on top
});

SceneManager::loadScene("Main");

7. Run and test¶

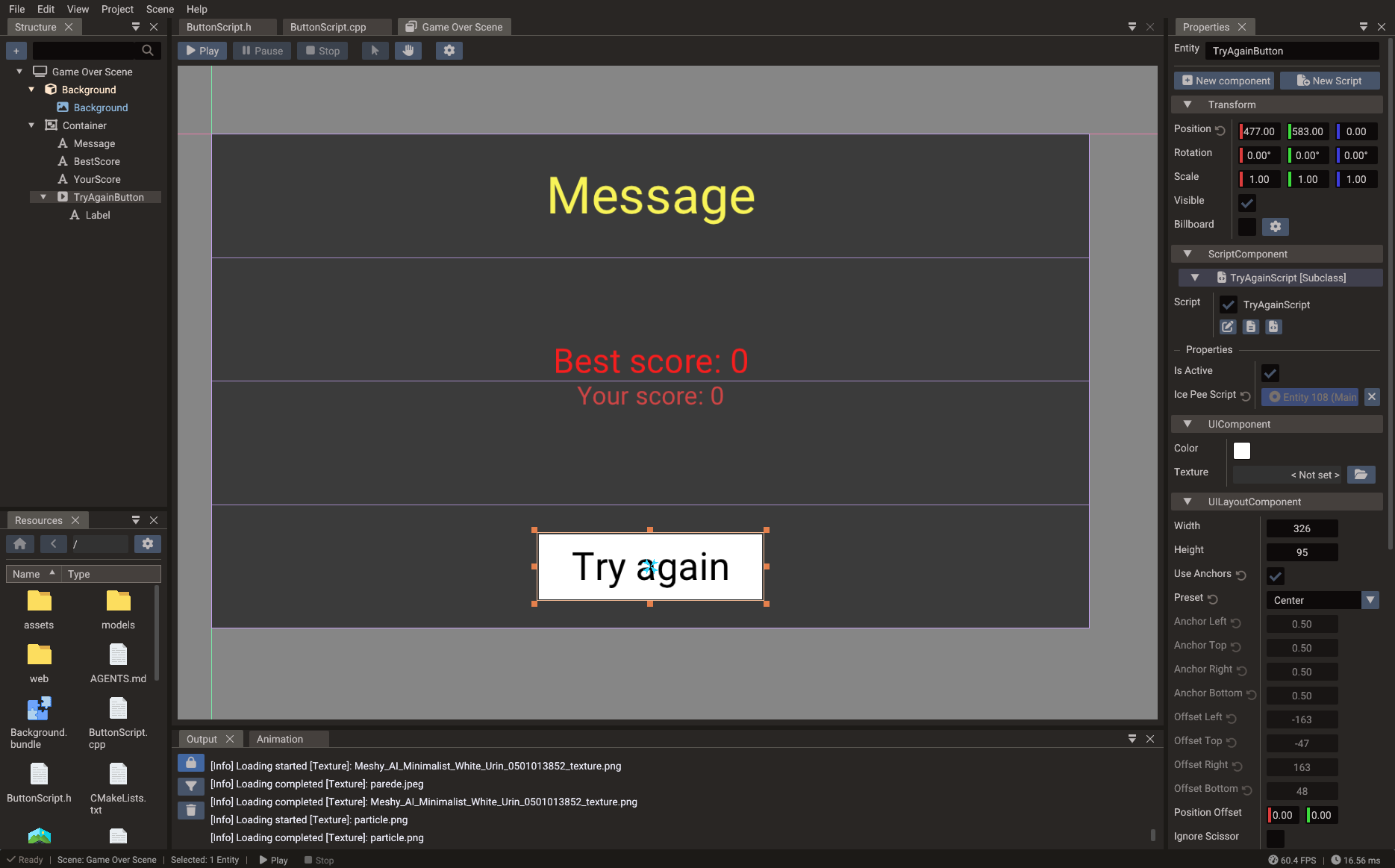

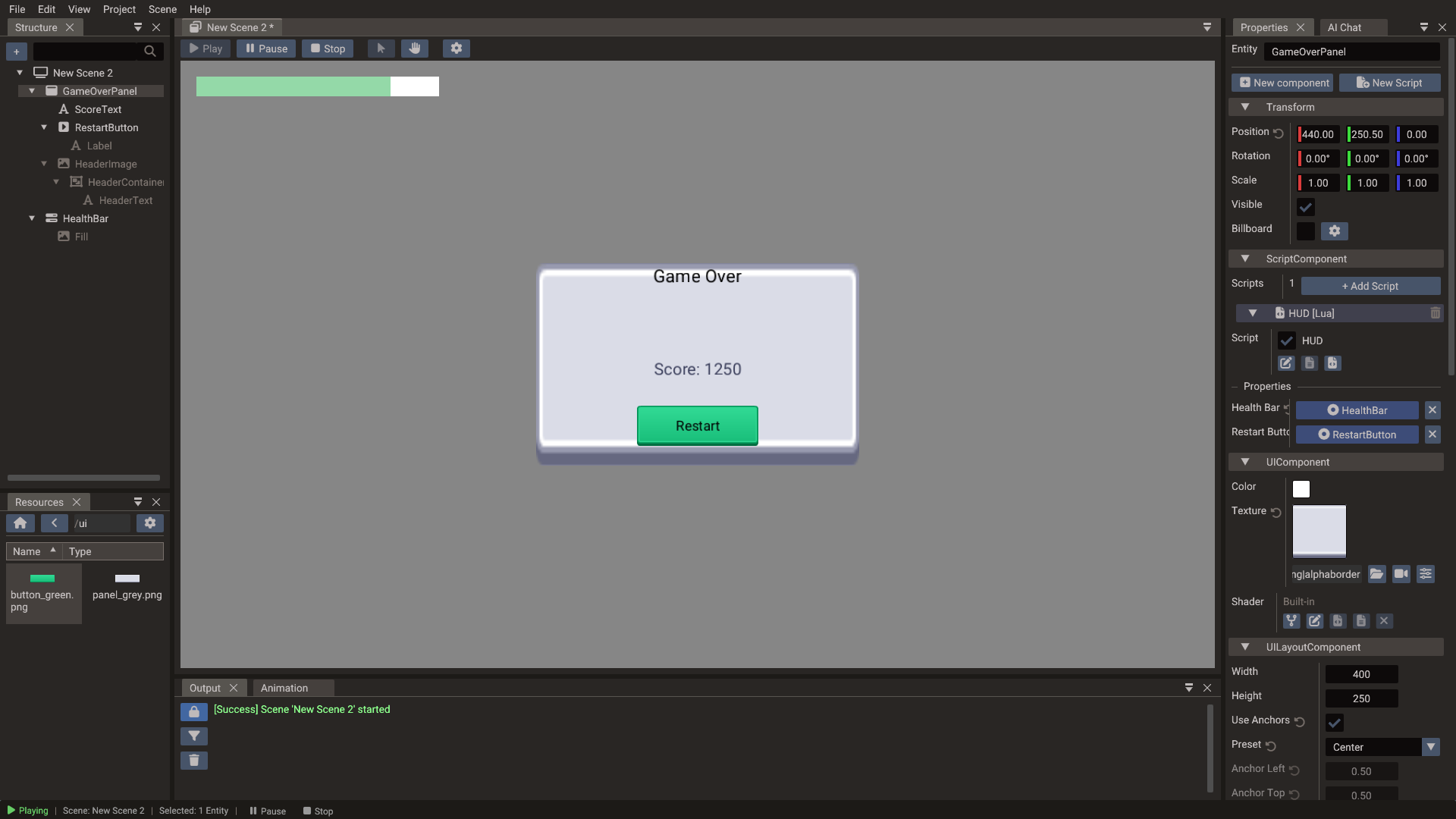

Press Play. You should see:

• The gameplay scene rendering as normal.
• The health bar in the top-left corner.
• The "Game Over" panel centered on screen.
• The "Restart" button responding to clicks.

If the UI is not visible:

• The HUD scene is registered and loaded as an additive layer with addSceneLayer, not setScene.
• The canvas size and scaling mode are set correctly.
• The UI scene camera is orthographic.
• UI events are enabled on the scene (the scene's enableUIEvents setting).

8. Next steps¶

• Add a pause menu to a separate UI scene and toggle it with Escape.
• Use Container with VERTICAL layout for a dynamic item list.
• Use TextEdit for a name-entry field in a high-score screen.
• Continue with User Interface for the full UI system reference.
