Editor Settings¶

Edit → Editor Settings holds the settings that belong to this machine rather than to the project: where your compiler and SDKs are, where exports go by default, how the editor itself renders, and how it talks to AI models and agents. They are saved with the editor's own settings, never to project.yaml, so they are not shared through version control and a teammate opening the same project keeps their own toolchain and keys.

Anything the game itself carries — application identity, canvas, window, directories, per-platform settings — is in Project Settings instead.

The dialog is a modal with five tabs and an OK / Cancel footer.

General¶

Setting	Default	Effect
Default Export Directory	Not set	Pre-fills the output folder in the Export Window for projects that have no remembered export directory yet
Editor VSync	Enabled	VSync for the editor's own frames
UI Scale	`100%`	Size of the editor text and panels, on top of the display scale the system reports

The default export directory is only a starting point: once you export a project, the folder you actually used is remembered per project and per export mode, and that remembered value wins the next time you open the Export Window.

Editor VSync covers editing frames only. While a scene is running, frames follow the project's own VSync setting instead, so the two never apply at once. Toggling takes effect on the next frame with no restart, and an idle editor waits on the window system either way, so disabling it does not make the editor spin.

UI Scale goes from 50% to 300% and multiplies the display scale your system reports. On a screen the system scales to 150%, the default 100% keeps the editor at 150%, and 120% makes it 180%. The new size applies when you press OK, with no restart. Docked panels resize with the text, but a panel beside the scene view grows to at most 30% of the window's width, or 40% of its height for panels along the bottom, so the scene keeps its room.

On Linux the editor reads the display scale from Xft.dpi, which desktops such as GNOME, KDE, and Xfce set, or from the GDK_SCALE and QT_SCALE_FACTOR environment variables. When none of them is set it uses 100%, as GTK and Qt apps do. To make every app larger, raise the scale in your desktop's settings. To change only the editor, use UI Scale.

Desktop¶

The C++ toolchain used both when playing a scene with C++ scripts and when running a Desktop export.

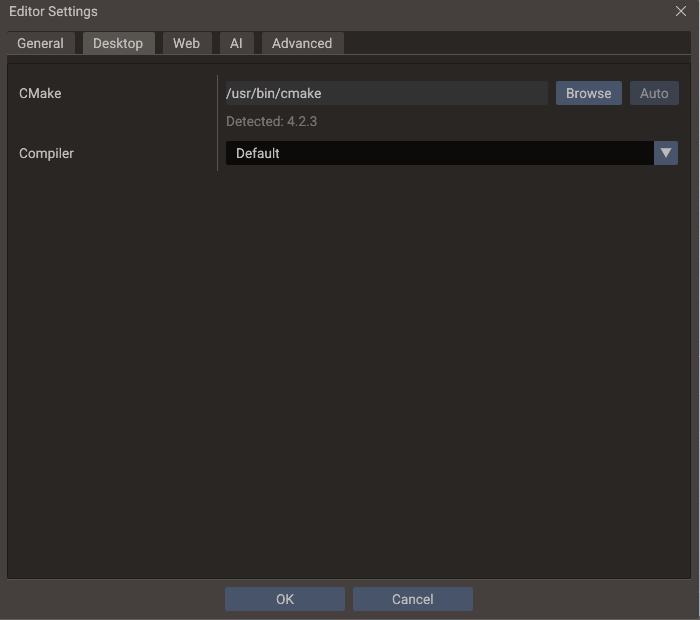

The Desktop tab of Editor Settings

Setting	Default	Effect
CMake	Auto-detect	Path to the `cmake` executable. Browse validates the pick by running it, and reports a folder with no working CMake instead of storing it. Auto returns to looking it up on `PATH`
Compiler	Default	The compiler kit used to build C++ scripts

The Compiler dropdown lists the kits the editor detected (GCC, Clang, MSVC/Visual Studio), each paired with a compatible CMake generator, and shows the resolved C and C++ compiler paths under the selection. Kits that cannot work are listed greyed out — hover one to read why. Default leaves the toolchain to CMake on Linux and macOS; on Windows it resolves to the best ABI-compatible detected kit, because a bare cmake there can pick a toolchain that cannot link the editor's engine.

If the kit stored for a project is no longer detected — a compiler that was uninstalled, or a project that came from another machine — the dropdown falls back to Default and warns that builds still use the stored kit until you press OK.

The compiler is stored per project, and remembered for new ones

Each project keeps its own kit, so a project that needs MSVC and one that needs MinGW can coexist. The kit is saved beside the project in .doriax/user/build.yaml, which is not committed, so a teammate opening the same project keeps their own toolchain. The kit you last chose also becomes the default for projects opened afterwards that have none, so in practice you set it once.

See C++ Build Setup for what each toolchain requires, the Windows ABI rules, and how to read a failing build.

Web¶

Setting	Default	Effect
Emscripten SDK	Auto-detect	Root of your `emsdk` installation, used by Web exports. Auto returns to detecting it from the `EMSDK` environment variable or `emcmake` on `PATH`
Status	—	Whether the SDK was found, and where

The status line updates as soon as you pick a folder, so you can confirm the SDK before leaving the dialog. See Building for HTML5 for installing the SDK.

AI¶

Two collapsible sections: AI Chat, open by default, and MCP Server below it. The chat's gear button, and its prompts to add a key, open the dialog on this tab.

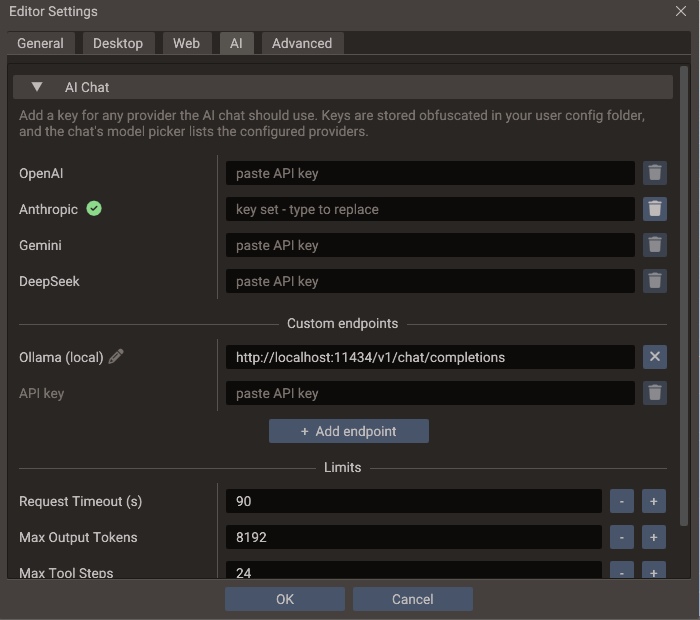

The AI tab of Editor Settings

AI Chat¶

The keys and limits of the built-in AI Chat. The model and the approval mode stay in the chat, beside its message box.

Setting	Default	Effect
OpenAI, Anthropic, Gemini, DeepSeek	Empty	One API key per provider. A green check marks a stored key, typing replaces it, and the trash button deletes it at once
Custom endpoints	None	OpenAI-compatible Chat Completions URLs, each with its own key and model list. Add endpoint offers presets for OpenCode Zen, OpenRouter and a local Ollama, or a blank one. The pencil renames an endpoint; the cross removes it, and its key on OK
Request Timeout (s)	`90`	How long to wait for each model response. Raise it for slow local models
Max Output Tokens	`8192`	The longest reply a model may write in one turn, including a whole script written in one tool call
Max Tool Steps	`24`	How many tool-using model turns one message may take. Raise it if long tasks stop at the tool-step limit

A custom endpoint works without a key, since a local server usually needs none. The chat's model picker lists every provider and endpoint that is ready to use.

MCP Server¶

Runs the editor's MCP server, which lets AI agents outside the editor — Claude Code, Codex, Gemini CLI — use the AI Chat's tools on the open project. That page covers connecting a client and the security model. The section starts collapsed.

Setting	Default	Effect
Enable Server	Off	Starts the server on `127.0.0.1`, now and whenever the editor starts
Status	—	Running, Stopped, or why the server could not start
Port	`3674`	The local port the server listens on
Allow Changes	On	Off leaves agents only the read-only tools
Token	Generated	The secret clients send with every request. Replacing it takes effect at once
URL	—	The endpoint, with a copy button
Clients	—	Ready commands that add the editor to Claude Code, Codex or Gemini CLI, each with a copy button

Advanced¶

Clear Shader Cache deletes the compiled-shader cache shared by every project on this editor version. Shaders are rebuilt on demand afterwards, so the only cost is the next build being slower. The button is disabled while a scene is playing.

Where the values are stored¶

Everything but the secrets goes to the editor's settings.yaml, beside editor.log — the FAQ lists the per-platform path.

Key	Holds
`cmake.path`	The CMake executable override
`emsdk.path`	The Emscripten SDK override
`export.default_dir`	The default export directory
`editor.ui_scale`	The UI scale as a multiplier, `1.25` for 125%
`project_builds`	Per project: compiler kit and parallel build jobs, keyed by the absolute path of its `project.yaml`
`project_exports`	Per project and export mode: the last output directory used
`ai_assistant`	The AI Chat's provider, model, approval mode, custom endpoints and limits
`mcp_server`	The MCP server's `enabled`, `port` and `allow_changes`

API keys and the MCP token never go to settings.yaml. They are kept in ai_keys.dat in the same folder, obfuscated with a key derived from that folder's path, so the file does not work when copied to another machine.

The per-project entries are keyed by path, so moving a project through Save Project As re-keys them and your toolchain choice follows the project on this machine.

Build jobs are edited in the Export Window

The parallel job count lives in the same project_builds entry as the compiler, but it is edited in the Export Window's Desktop mode as Build Jobs. The value applies to Play builds too. See Parallel builds.

Migrating from older projects¶

Editors before this dialog kept the compiler kit and job count in project.yaml as cmakeCCompiler, cmakeCxxCompiler, cmakeGenerator and cmakeBuildJobs. Opening such a project copies those values into project_builds once, and never over an entry this machine already has. The keys stay in the old file until the project is saved again, so an older editor can still read it.
